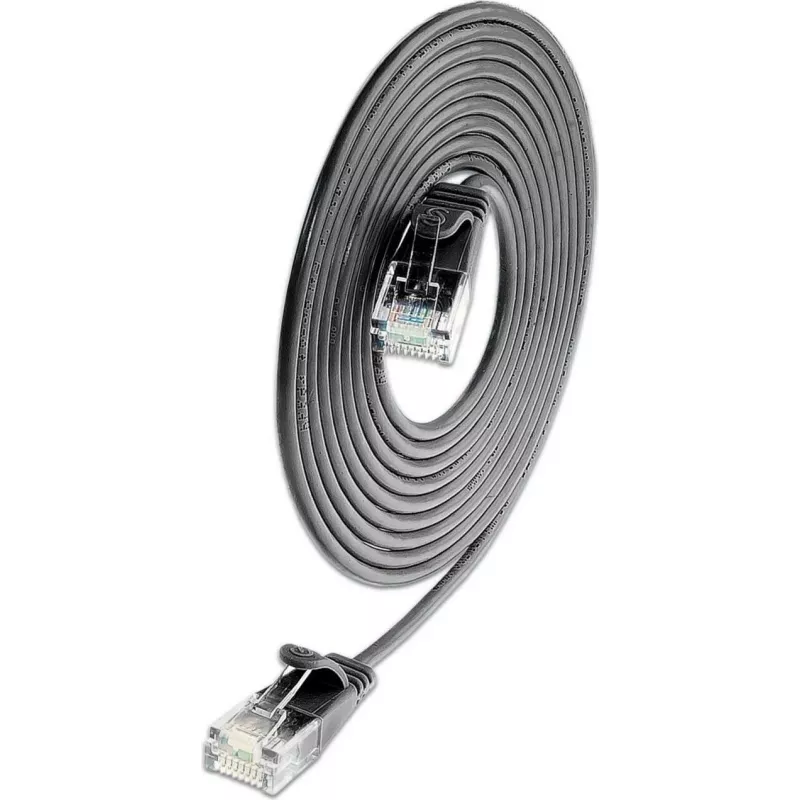

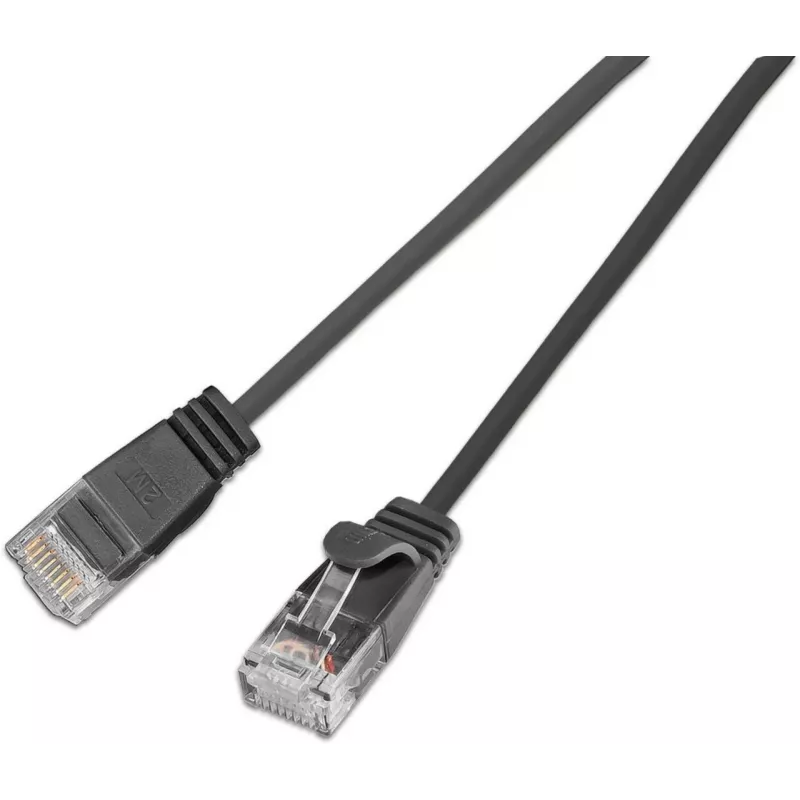

Wirewin Cat6A U/UTP cavo patch slim, RJ45, 0,5 m, nero SLIM-L-UU-K6A 2.0 BK

10 Gigabit Ethernet over a 3.6 mm slim round Cat6A U/UTP patch cable with gold-plated RJ45 connectors.

Overview

The SLIM WIREWINE SLIM-L-UU-K6A 2.0 BK is a 0.5-meter Category 6A patch cable built for high-density network environments. Its 3.6 mm outer diameter reduces clutter in server racks and patch panels, while the unshielded twisted pair construction supports 10GBASE-T up to 500 MHz. The cable uses stranded AWG 30/7 copper conductors and a black LSZH jacket, making it halogen-free and suitable for areas with strict fire safety requirements.

What stands out

• 10 Gigabit Ethernet support (10GBASE-T) at 500 MHz bandwidth
• Slim 3.6 mm round design for better airflow and easier cable management
• Gold-plated RJ45 connectors with molded slimline boots
• LSZH (Low Smoke Zero Halogen) jacket for improved fire safety
• Supports Power over Ethernet up to 100W (PoE, PoE+, 4PPoE)

Technical details

• Cable standard: Cat6A (Category 6A)
• Shielding: U/UTP (Unshielded/Unshielded Twisted Pair)
• Length: 0.5 m
• Outer diameter: 3.6 mm
• Conductor gauge: AWG 30/7 (stranded copper)
• Wiring scheme: TIA/EIA 568B
• Impedance: 100 Ohm
• Operating temperature: -20°C to +60°C

Our verdict

A reliable slim Cat6A patch cable that delivers 10G performance in a compact, halogen-free design.
